Select Size of space:

Area=
  • 1 Space ~50x50m
  • 5 Spaces ~22.5m x22.5m
  • 10 Spaces ~16m x 16m
  • 15 Spaces ~13m x 13m
  • 20 Spaces ~11m x 11m
Area=
  • 1 Space ~114x114m
  • 5 Spaces ~50m x50m
  • 10 Spaces ~36m x 36m
  • 15 Spaces ~30m x 30m
  • 20 Spaces ~25m x 25m
Area=
  • 1 Space ~145x145m
  • 5 Spaces ~65m x65m
  • 10 Spaces ~46m x 46m
  • 15 Spaces ~37m x 37m
  • 20 Spaces ~32m x 32m
Small Space

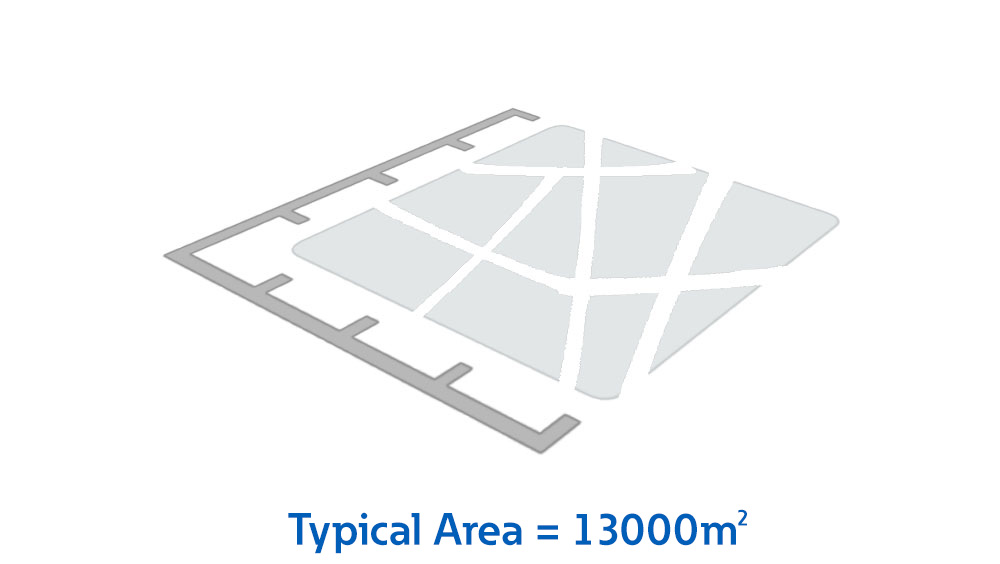

Medium Space
Large Space

Select Emergency Types:

OR Help me Decide?

Small Area – 100% Dedicated Emergencies Modify Close

Representative Example
Lowest TCO LP-Star
15Year TCO (£) 9,621
Increase in TCO for no test systems 200-280%
One time Year on year

Small Area – 100% Dedicated Emergencies Year on Year Modify Close

Representative Example LP Star SC (No Test)
Capital (£) 8,462 4,517
15Year TCO (£) 9,621 28,330
Saving (£) 19,068 -
Cost Neutral 3.5Years -
Return on investment 4.8x -
One time Year on year

Small Area 50/50 Split Modify Close

Representative Example
Lowest TCO Dualguard-S
15Year TCO (£) 9,621
Increase in TCO for no test systems 150-200%
Saving moving to Dedicated EL 51%
One time Year on year

Small Area – 50/50 Split Year on Year Modify Close

Representative Example Dualguard SC (No Test)
Capital (£) 18,646 5764
15Year TCO (£) 21,671 53,865
Saving (£) 32,193 -
Cost Neutral 4Years -
Additional investment (£) 12,882 -
Return on investment 2.5x -
Further Saving - 100% EL Scheme (£) 11,140
Cost Neutral – 100% EL Scheme (£) 1Year
One time Year on year

Small Area 100% Mains Modify Close

Representative Example
Lowest TCO Dualguard-S
15Year TCO (£) 9,621
Increase in TCO for no test systems 130-180%
Saving moving to Dedicated EL 66%
One time Year on year

Small Area – 100% Mains Year on Year Modify Close

Representative Example Dualguard SC (No Test)
Capital (£) 26,844 6894
15Year TCO (£) 31,886 74,045
Saving (£) 42,158 -
Cost Neutral <4.5Years -
Return on Investment 2.1x -
Further Saving - 100% EL Scheme (£) 21,355 -
Cost Neutral – 100% EL Scheme (£) 0 Years -
One time Year on year

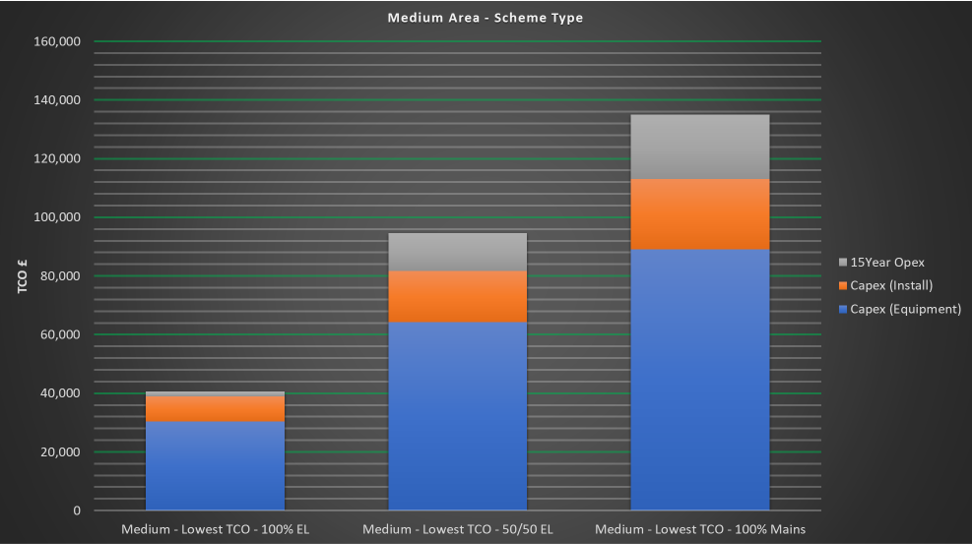

Medium – 100% Dedicated Emergencies Modify Close

Representative Example
Lowest TCO Dualguard-S
15Year TCO (£) £40557
Increase in TCO for no test systems 250-260%
One time Year on year

Medium Area – 100% Dedicated Emergencies Year on Year Modify Close

Representative Example Dualguard-S SC (No Test)
Capital (£) 38,919 22,585
15Year TCO (£) 40,557 141,647
Saving (£) 101,090 -
Cost Neutral <3Years -
Return on investment 6.1x -
One time Year on year

Medium Area 50/50 Split Modify Close

Representative Example
Lowest TCO Dualguard-S
15Year TCO (£)  94,637
Increase in TCO for no test systems 185-230%
Saving moving to Dedicated EL 57%
One time Year on year

Medium Area – 50/50 Split Year on Year Modify Close

Representative Example Dualguard SC (No Test)
Capital (£)  81,634  29,071
15Year TCO (£)  94,637  271,482
Saving (£)  176,846 -
Cost Neutral 4Years -
Return on Investment 3.3x -
Further Saving - 100% EL Scheme (£) 54,079 -
Cost Neutral – 100% EL Scheme (£) <1Year -
One time Year on year

Medium Area 100% Mains Modify Close

Representative Example
Lowest TCO Dualguard-S
15Year TCO (£)  94,637
Increase in TCO for no test systems 170-225%
Saving moving to Dedicated EL 70%
One time Year on year

Medium Area – 100% Mains Year on Year Modify Close

Representative Example Dualguard SC (No Test)
Capital (£) 113,125  34,483
15Year TCO (£) 134,985 369,763
Saving (£) 234,778 -
Cost Neutral 4Years -
Return on Investment 3x -
Further Saving - 100% EL Scheme (£) 94,428 -
Cost Neutral – 100% EL Scheme (£) <0.5Year -
One time Year on year

Large – 100% Dedicated Emergencies Modify Close

Representative Example
Lowest TCO Dualguard-S
15Year TCO (£) £75,890
Increase in TCO for no test systems 270%
One time Year on year

Large Area – 100% Dedicated Emergencies Year on Year Modify Close

Representative Example Dualguard-S SC (No Test)
Capital (£) 73,270 45,170
15Year TCO (£) 75,890  283,295
Saving (£) 207,405 -
Cost Neutral <2.5Years -
Return on investment 7.3x -
One time Year on year

Large Area 50/50 Split Modify Close

Representative Example
Lowest TCO Dualguard-S
15Year TCO (£) 193,306
Increase in TCO for no test systems 180-230%
Saving moving to Dedicated EL 60%
One time Year on year

Large Area – 50/50 Split Year on Year Modify Close

Representative Example Dualguard SC (No Test)
Capital (£) 163,399 58,220
15Year TCO (£) 193,306 543


Saving (£) 350,213 -
Cost Neutral 4Years -
Return on Investment 3.3x -
Further Saving - 100% EL Scheme (£) 117,416 -
Cost Neutral – 100% EL Scheme (£) <1Year -
One time Year on year

Large Area 100% Mains Modify Close

Representative Example
Lowest TCO Dualguard-S
15Year TCO (£)  281,086
Increase in TCO for no test systems 160-215%
Saving moving to Dedicated EL 73%
One time Year on year

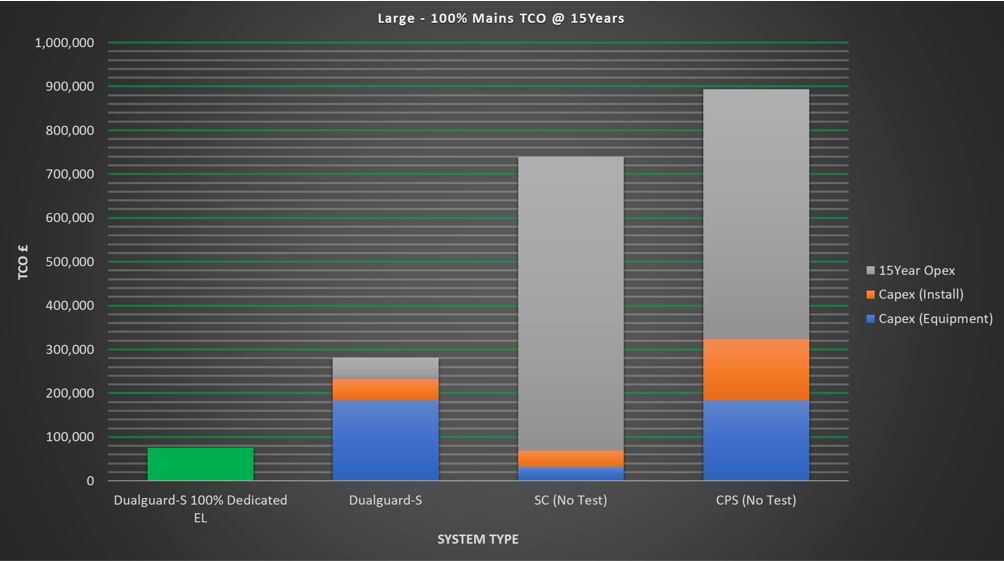

Large Area – 100% Mains Year on Year Modify Close

Representative Example Dualguard SC (No Test)
Capital (£) 231,242 69,013
15Year TCO (£) 281

 		  740,049
Saving (£) 458,963 -
Cost Neutral 4Years -
Return on Investment 2.8x -
Further Saving - 100% EL Scheme (£) 205,196 -
Cost Neutral – 100% EL Scheme (£) <0.5Year -
One time Year on year

Small Area - Help me decide Luminaire Split Close

Representative Example
Lowest TCO 100% Dedicated Emergencies
100% EL £9,621
50/50 Split £21,672
100% Mains £31,887

Medium Area - Help me decide Luminaire Split Close

Representative Example

Lowest TCO

100% Dedicated Emergencies

100% EL

£40,557

50/50 Split

£94,636

100% Mains

£134,985

Large Area - Help me decide Luminaire Split Close

Representative Example

Lowest TCO

100% Dedicated Emergencies

100% EL

£75,890

50/50 Split

£193,306

100% Mains

£281,086

Contact us to find out more

How Are Area’s Calculated Close

Dedicated Heads:
  • Small Area 50x Dedicated Heads
  • Medium Area 250x Dedicated Heads
  • Large Area 500x Dedicated Heads
  • ½ Dedicated Heads are pinspot open area style luminaires, range optical distribution @ 3m = 10x10
  • 3/8 Dedicated Heads are IP65 bulkheads with optical distribution @3m = 10x 10
  • Remaining 1/8th are exit signs
  • 7/8th of products are 10x10m
  • Small 50x7/8 = 44
  • Medium 250x7/8 = 219
  • Large 500x7/8 = 348
  • 10x10m distribution = 100m2 Coverage
  • Small Area 44x100m2 = 4400m2
  • Medium Area 219x100m2 = 21,900m2
  • Large Area = 348x 100m2 34,800m2
  • Typical utilisation of the area’s is difficult to quantify but BS5266-1 requires many “points of emphasis” and two luminaires “per compartment” which dramatically reduces the maximum area a luminaire can serve. A 40% reduction has been applied for typical area and then rounded to the nearest 500m2 to give the typical area’s found in “area selection”
Mains Conversions:
  • Small/Medium and Large Area’s calculated from dedicated heads (left text box)
  • Small Area 44x100m2 = 4400m2
  • Medium Area 219x100m2 = 21,900m2
  • Large Area = 348x 100m2 34,800m2
  • For 50/50 Splits the mains only needs to cover half of this area.
  • For 100% Mains the mains emergencies needs to cover the whole area.
  • A mains luminaire will cover 32.5m2 to 0.5lux and 1:40 uniformity.
  • The remaining area is divided by 32.5m2 to give the amount of mains luminaires.
  • Area utilisation as per the left text box.

Assumptions Close

  • Cost of installing an emergency luminaire £12.50
  • Labour Rate £25 per hour
  • Out of hours rate £37.50
  • Twin & Earth per m (installed) £6.92
  • FP per m (installed) £7.20
  • Data Pair per m (installed) £1.78
  • T&E Per luminaire (SC) 2m
  • FP per luminaire (3m Dualguard, mixed functionality on final circuit), (6m CPS No test, split circuits required)
  • Data Pair per luminaire (5m)
  • Battery install for CPS included
  • All commissioning costs included
  • No lamp replacement/failures taken into account
  • Manual functional/duration check of lamps 5 minutes per luminaire, per month
  • Batch/bulk battery change at 4years SC and 10years CPS
  • Battery change 30mins per luminaire out of hours
  • Battery change for CPS based on size of system but typically 1-3days
